HSRP84 Magnetic Side Flexing Conveyor Slat Chain

Description

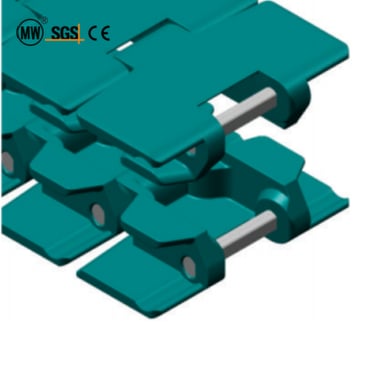

The HSSP84 sideflex run single hinge chain is a high-strength modular conveyor chain designed for curved-path conveying in heavy-duty industrial applications. Featuring a reinforced single-hinge pin structure and an optimized side-flexing link profile, the HSSP84 series delivers reliable product transfer through horizontal curves, compact bends, and multi-directional conveyor routing while maintaining the structural integrity needed for higher load conditions. It is extensively used in automotive component handling, heavy-packaging lines, industrial assembly systems, bottle and container conveying, food processing, and logistics distribution centers where both curve navigation and load-bearing performance are required.

Manufactured from high-performance engineering plastics and wear-resistant steel pin options using precision injection molding and strict quality control protocols, Hangzhou Ocean Industry's HSSP84 sideflex single hinge chains provide superior tensile strength, consistent articulation accuracy, and extended service life under demanding continuous-operation conditions.

Key Features

High-strength single hinge construction: reinforced hinge pin bore and heavy-duty single-row pin design provide increased pull-out resistance and load capacity — supporting heavier product conveying through curved sections without chain deformation or elongation
Side-flexing link geometry: precision-engineered link profile with controlled lateral clearance enables smooth flexing through horizontal curves and bends — allowing compact multi-directional conveyor layouts without transfer gaps or additional drive stations
Reinforced flat-top surface: strengthened flat-top link body ensures uniform load distribution and stable product support through both straight and curved conveyor sections — minimizing product tipping or shifting at curve transitions
Steel pin option for heavy loads: available with hardened stainless steel hinge pins for applications requiring maximum tensile performance, high-temperature resistance, or extended wear life under abrasive conveying conditions
Low-friction articulation: precision-molded hinge interfaces with self-lubricating acetal (POM) or nylon material options reduce friction at flexing points — lowering drive power requirements and minimizing sprocket and wear strip abrasion
Durable in harsh environments: engineered materials resist impact, abrasion, moisture, cleaning chemicals, and oils — suitable for washdown, high-humidity, and chemically aggressive industrial settings
Complete customization: chain width, minimum bend radius, link pitch, pin material (plastic or stainless steel), surface pattern, color identification, and accessory configurations (flights, side guards, friction tops) can be tailored to specific application and load requirements

Application Range

Automotive parts — curved component transfer and assembly line feeding
Heavy packaging — curved case, carton, and container conveying lines
Beverage and bottling — curve-based bottle accumulation and diverting conveyors
Food processing — curved washing, cooling, and packaging transfer lines
Industrial assembly — multi-station curved routing and parts handling
Logistics and warehousing — curved parcel sorting and merge conveyors
Chemical and industrial materials — curved bulk container and drum handling
General manufacturing — space-efficient curved inspection and processing lines

Trusted Manufacturer of HSSP84 Sideflex Run Single Hinge Chains Hangzhou Ocean Industry Co., Ltd. is a specialized manufacturer of HSSP84 sideflex run single hinge chains and heavy-duty modular conveyor chain systems, with products exported to Europe, North America, the Middle East, Southeast Asia, and other international markets since 2005. All HSSP84 series chains are produced under ISO9001-certified quality management and are widely recognized by conveyor OEMs, system integrators, and industrial end-users for high load-bearing performance, consistent curve stability, material reliability, and competitive factory-direct pricing.

We offer full OEM and ODM customization services — HSSP84 sideflex single hinge chains can be manufactured to customer-supplied drawings, samples, or operational specifications including load capacity, minimum curve radius, pin material, operating temperature, and surface configuration. Contact our engineering team today with your drawings or requirements for a free quotation and technical consultation.

Quality

Expert chain manufacturing with 20 years experience.
