Heavy duty cranked-link transmission chains

Description

Parameter

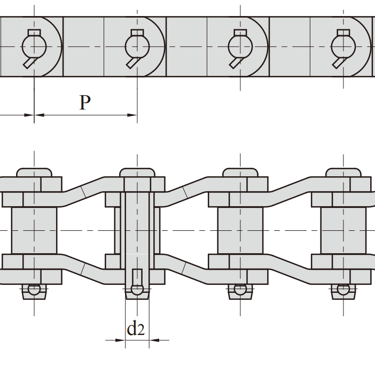

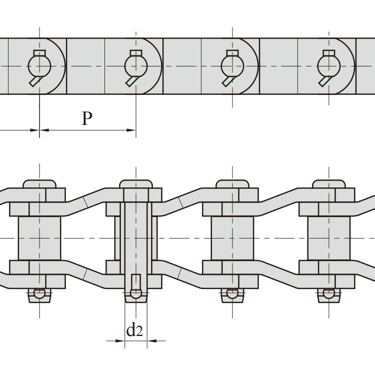

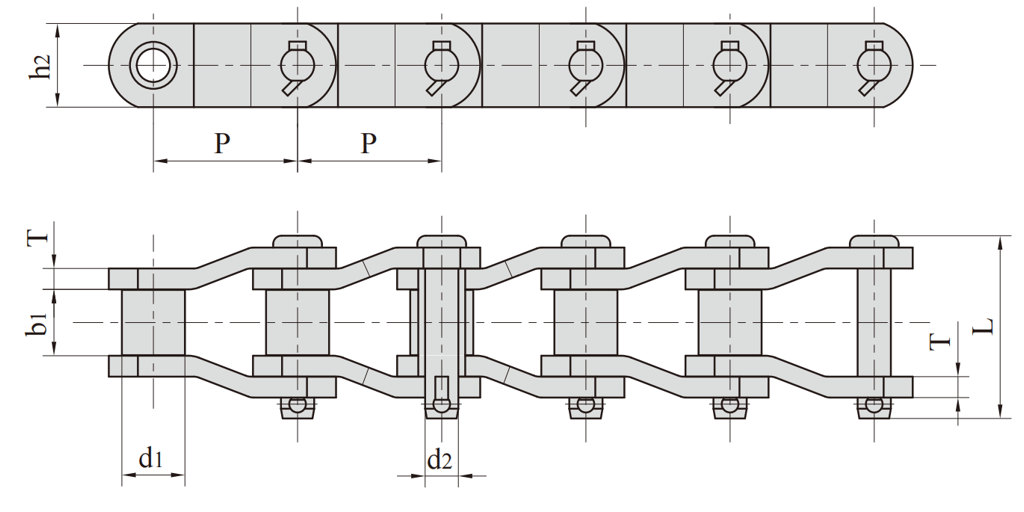

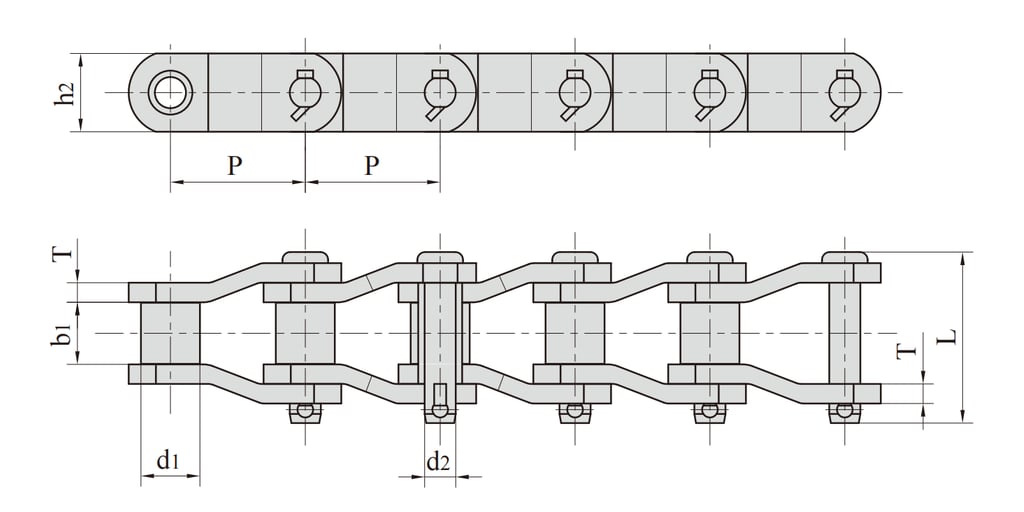

Heavy duty cranked roller chain for heavy-duty transmission conforms to ISO 3512.ASME B29 10, DIN 8182 and other standards.

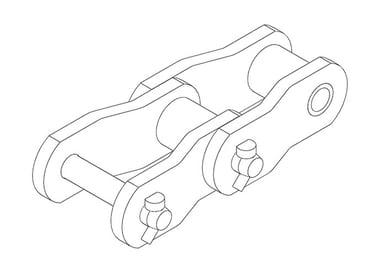

There is only one kind of curved plate link in the structure of curved plate roller chain.and the bending of chain plate enables the chain to absorb large impact load: The gap between the pin shaft, sleeve and chain plate is large, which can keep good flexibility under severe working conditions.

Using high-quality materials and advanced processing technology, the tensile strength of the product reaches the minimum tensile strength of ISO standard by more than 1.15 times.

lt is suitable for open power transmission occasions under heavy working conditions such as low speed, heavy load, dust and difficulty in coplanar two sprockets, etc.It is mainly used in large machinery such as mines, metallurgy and engineering machinery.
