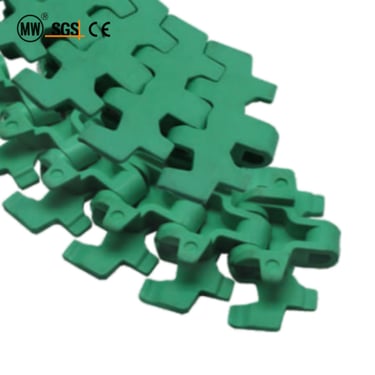

826 Sideflex Run Single Hinge Chain

Description

The 826 heavy duty sideflex run single hinge chain is a high-performance modular conveying solution engineered for heavy-load applications requiring smooth directional transitions in demanding industrial environments. Featuring a reinforced single-hinge architecture and a thick-walled link design, the 826 series provides exceptional tensile strength and lateral stability, ensuring reliable product handling through horizontal curves. It is specifically optimized for high-throughput lines in bottling, packaging, container handling, and automotive parts conveying where structural integrity and side-flexing precision are critical for maintaining system efficiency.

Manufactured from high-performance engineering thermoplastics with precision-ground stainless steel pins, Hangzhou Ocean Industry's 826 heavy-duty chains deliver maximum pull-out resistance and low-friction operation. Each link is produced using high-pressure injection molding and undergoes rigorous quality testing to ensure extended service life and consistent performance under continuous, heavy-duty operational cycles.

Key Features

• Reinforced Single-Hinge Design: the 826 series features an upgraded, thick-walled hinge structure that provides superior pull-out strength and load distribution compared to standard side-flexing chains

• Precision Side-Flexing Geometry: engineered link articulation allows for smooth, stable movement through tight horizontal curves, preventing product surging and ensuring precise orientation during high-speed transitions

• High-Tensile Load Capacity: the combination of reinforced thermoplastic links and high-strength stainless steel pins allows for the conveying of heavy crates, containers, and industrial components without link deformation

• Low-Friction Performance: the advanced material composition minimizes drag against conveyor wear strips, reducing motor load and energy consumption while significantly extending the life of conveyor components

• Anti-Static and Wear Resistant: available in specialized low-friction acetal (POM) and high-impact nylon grades to resist abrasive wear and prevent static buildup in sensitive electronic or dry packaging environments

• Enhanced Pin Retention: high-precision pin bores ensure secure seating of the stainless steel hinge pins, maintaining chain pitch consistency and preventing pin migration even in high-vibration applications

• Full Customization Options: chain width, minimum curve radius, material grades (standard, heat-resistant, or chemical-resistant), and surface configurations can be tailored to meet specific industrial conveying requirements

Application Range

• Beverage and Bottling — curved conveying of heavy glass bottles, crates, and multi-packs

• Automotive Parts — curved transfer of transmissions, engine components, and heavy metal parts

• Food Packaging — curved routing of bulk packaged goods and heavy shipping containers

• Heavy Logistics — curved high-speed sorting and routing for oversized parcels and freight

• Container Manufacturing — curved conveying of large plastic drums and metal canisters

• Pharmaceutical Industry — stable curved transport for high-volume medicine packaging lines

• Construction Materials — curved handling of specialized fittings and heavy hardware components

• General Manufacturing — versatile curved accumulation and distribution for diverse heavy products

Trusted Manufacturer of 826 Heavy Duty Sideflex Roller Chains

Hangzhou Ocean Industry Co., Ltd. is a specialized manufacturer of 826 heavy duty sideflex run single hinge chains and professional modular conveyor systems, with products exported to Europe, North America, the Middle East, Southeast Asia, and other international markets since 2005. All 826 series chains are produced under ISO9001-certified quality management and are recognized by conveyor OEMs, system integrators, and industrial end-users worldwide for heavy-load durability, reliable flexing performance, and competitive factory-direct pricing.

We offer complete OEM and ODM customization services — 826 heavy duty sideflexing chains can be manufactured to customer-supplied drawings, samples, or specific load and temperature requirements. Contact our engineering team today with your drawings or specifications for a free quotation and technical consultation.
