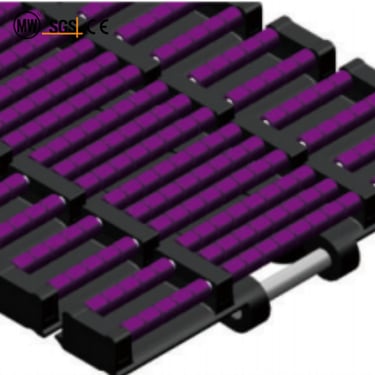

823 Heavy Duty Sideflex Run Single Hinge Roller Chain

Description

The 823 heavy duty sideflex run single hinge roller chain is an ultra-high-load modular conveyor chain engineered for the most demanding curved conveying applications in severe-duty industrial environments. Featuring an upgraded reinforced single-hinge pin structure with oversized precision rollers at each link articulation point, the 823 series delivers maximum load distribution and rolling efficiency — converting sliding friction into rolling friction even under extreme product weights and continuous high-throughput conditions. It is specifically designed for steel and metal product handling, mining and aggregate conveying, foundry and casting lines, heavy machinery component transfer, and large-format container and pallet handling where extreme load capacity and reliable side-flexing through curves converge in a single conveyor system.

Manufactured from high-performance engineering thermoplastics with hardened stainless steel pin and roller options using precision injection molding and comprehensive quality testing, Hangzhou Ocean Industry's 823 ultra-heavy-duty roller chains provide exceptional structural integrity, maximum pull-out resistance, and extended service life under the most punishing continuous-operation conditions.

Key Features

Oversized roller technology: enlarged precision-formed rollers at each hinge joint provide an increased rolling contact surface — delivering superior load distribution, reduced point loading on wear strips, and maximum friction reduction under extreme conveying weights
Ultra-heavy-duty single hinge construction: reinforced thick-wall link body and high-tensile single-row hinge pin design provide maximum pull-out strength and deformation resistance — supporting extreme-load conveying and severe accumulated load conditions through curved pathways
Side-flexing under extreme load: engineered link and roller geometry maintains smooth flexing capability and rolling contact through horizontal curves — ensuring stable directional transitions and product integrity even when conveying the heaviest products
Maximum wear strip and sprocket life: oversized rolling contact area dramatically reduces surface pressure and abrasive wear on conveyor wear strips and sprocket teeth — extending component service life and reducing maintenance intervals in high-load systems
High-impact and shock load resistance: reinforced link structure absorbs impact and shock loading from heavy product drop-on and start-stop cycling — minimizing risk of link fracture, pin shear, or chain failure in severe-duty applications
Temperature and chemical resilience: available in heat-resistant nylon and high-temperature acetal (POM) grades with steel pin and roller options — materials withstand thermal stress, abrasion, oils, and industrial chemicals in harsh operating environments
Comprehensive customization: chain width, minimum curve radius, roller diameter and material (plastic or hardened steel), pin material, link pitch, surface pattern, color identification, and accessory attachments (heavy-duty flights, side guards) can be specified to match extreme-load and severe-duty requirements

Application Range

Steel and metal industry — curved heavy plate, bar, and component conveying
Mining and aggregate — curved heavy material transport and screening lines
Foundry and casting — curved hot product handling and cooling conveyors
Heavy machinery — curved large component transfer and assembly feeding
Large container and pallet handling — curved accumulation and routing lines
Automotive heavy parts — curved engine, transmission, and chassis component conveying
Building materials — curved brick, tile, and heavy product handling
Heavy logistics — curved oversized parcel and freight sorting conveyors

Trusted Manufacturer of 823 Heavy Duty Sideflex Roller Chains Hangzhou Ocean Industry Co., Ltd. is a specialized manufacturer of 823 heavy duty sideflex run single hinge roller chains and ultra-heavy-duty modular conveyor chain systems, with products exported to Europe, North America, the Middle East, Southeast Asia, and other international markets since 2005. All 823 series roller chains are produced under ISO9001-certified quality management and are recognized by conveyor OEMs, system integrators, and heavy-industry end-users worldwide for extreme-load performance, reliable rolling efficiency, material consistency, and competitive factory-direct pricing.

We offer complete OEM and ODM customization services — 823 heavy duty sideflex roller chains can be manufactured to customer-supplied drawings, samples, or operational specifications including extreme load requirements, minimum curve radius, roller and pin material, operating temperature range, and surface configuration. Contact our engineering team today with your drawings or requirements for a free quotation and technical consultation.
