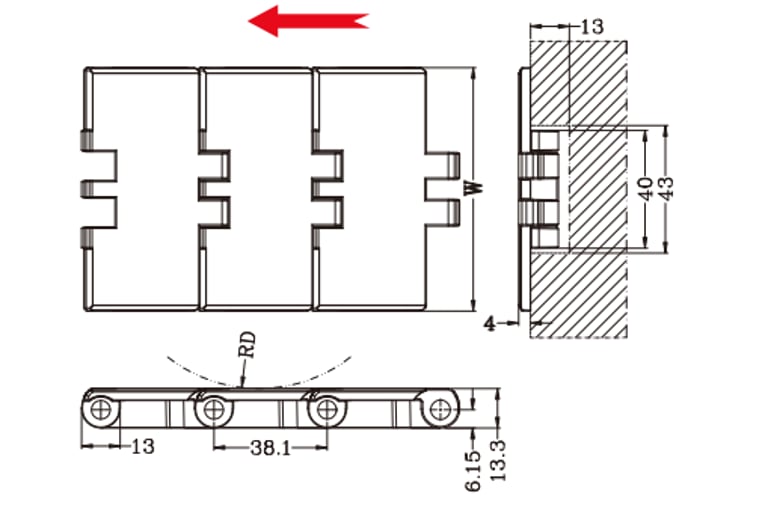

820 Straight Run Single Hinge Chain

Description

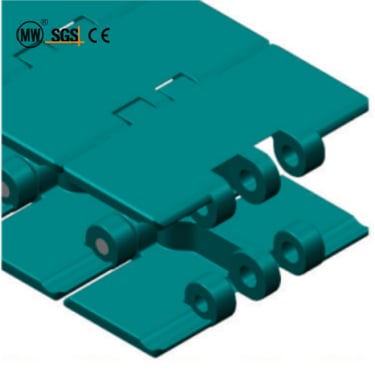

The 820 straight run single hinge chain is a robust and economical modular conveyor chain designed for straight-line product transfer in demanding industrial conveying applications. Engineered with a single-row hinge pin configuration and a solid flat-top surface profile, the 820 series provides stable, continuous product support across horizontal conveying paths in food and beverage packaging, pharmaceutical production, container handling, electronics assembly, and general manufacturing lines. Its straightforward single-hinge architecture ensures reliable tracking, simplified installation, and straightforward maintenance — making it a preferred choice for high-volume straight-run conveyor systems where curve flexibility is not required.

Manufactured from premium-grade engineering plastics using precision injection molding and stringent quality control processes, Hangzhou Ocean Industry's 820 single hinge chains deliver outstanding wear resistance, consistent pitch accuracy, and dependable tensile performance for continuous 24/7 production environments.

Key Features

Single hinge pin design: simplified single-row hinge construction reduces component count, lowers overall chain weight, and facilitates rapid pin removal and link replacement during scheduled maintenance — minimizing conveyor downtime
Straight-run optimization: purpose-engineered for linear conveying paths with no side-flex requirement, the 820 series maintains precise lateral tracking and eliminates lateral drift — ensuring stable product positioning across long straight conveyor sections
Strong flat-top conveying surface: solid flat-top link surface provides uniform product contact area, preventing small or irregularly shaped items from tipping, catching, or jamming during transport
High tensile strength and load capacity: reinforced link body geometry and high-grade hinge pins deliver superior pull-out resistance and load-bearing performance — suitable for heavy-product conveying and accumulated load conditions
Wear and fatigue resistance: precision-molded acetal (POM) or polypropylene (PP) links with controlled surface hardness provide extended service life under repeated articulation cycles, reducing frequency of chain replacement
Hygienic and easy-to-clean construction: smooth-link surfaces and accessible hinge joints minimize contamination traps, supporting fast cleaning and sanitation in food-grade, pharmaceutical, and washdown applications — FDA-compliant material options available

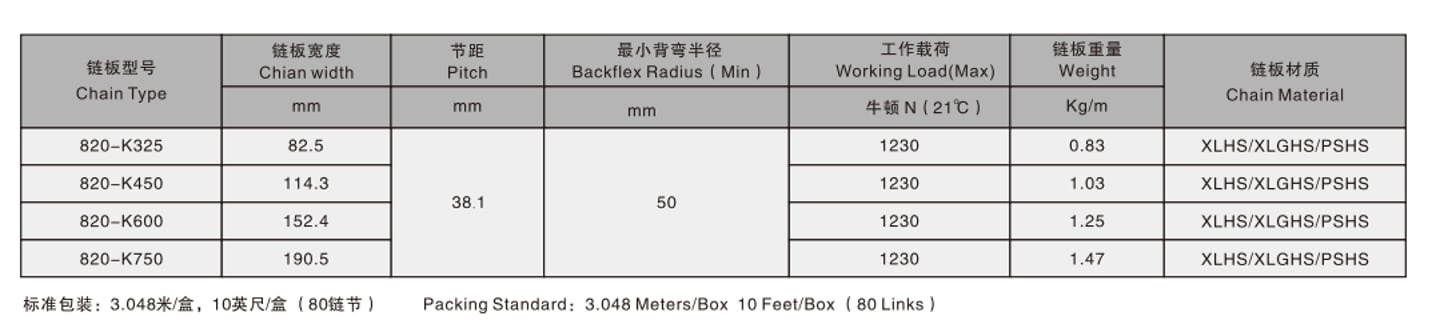

Customizable specifications: chain width, link pitch, pin material (plastic or stainless steel), surface pattern (flat top, perforated, or friction-top), color identification, and accessory attachments (flights, side guards) can be tailored to specific application requirements

Application Range

Food and beverage packaging — bottle, can, and container filling line conveyors
Pharmaceutical and healthcare product — blister pack, carton, and case conveying
Dairy and beverage — bottle feeding, rinsing, capping, and labeling transfer lines
Electronics and PCB assembly — component and board handling conveyors
Automotive parts — component transfer and assembly line feeding
Logistics and warehousing — parcel sorting and straight-run accumulation conveyors
Consumer goods — cosmetics, personal care, and household product packaging lines
General industrial — parts feeding, inspection, and packaging station conveyors

Trusted Manufacturer of 820 Straight Run Single Hinge Chains Hangzhou Ocean Industry Co., Ltd. is a dedicated manufacturer of 820 straight run single hinge chains and modular conveyor chain systems, with products exported to Europe, North America, the Middle East, Southeast Asia, and other international markets since 2005. All 820 series single hinge chains are produced under ISO9001-certified quality management and are recognized by global customers for consistent link precision, material reliability, competitive factory-direct pricing, and dependable on-time delivery.

We offer full OEM and ODM customization — 820 single hinge chains can be manufactured to customer-provided drawings, samples, or application specifications including load capacity, operating temperature, pin material, and surface configuration. Contact our technical team today with your drawings or requirements for a free quotation and professional consultation.

Quality

Expert chain manufacturing with 20 years experience.
