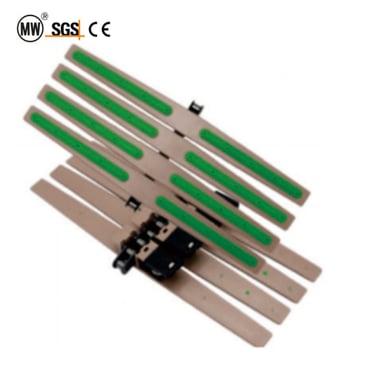

1873TW-SGS Sideflex Steelbase Chain

Description

The 1873TW-SGS sideflex steelbase chain is a premium hybrid conveyor solution engineered for high-tension applications that require extra-wide stable surfaces and complex side-flexing movement. By combining a heavy-duty 60P precision steel roller chain with specialized "TW" (Twin-TAB) wide modular top plates, this chain delivers the structural integrity needed for long-distance conveyor runs that all-plastic chains cannot handle. The integrated SGS (Side Guard/Gripper System) and double-TAB design ensure the chain remains perfectly aligned and securely locked into the track, even when transporting large-format containers or heavy industrial parts through tight horizontal curves at high speeds.

Manufactured from high-grade carbon steel or stainless steel base chain and premium reinforced engineering thermoplastics with optimized plate geometry, Hangzhou Ocean Industry's 1873TW-SGS chains provide exceptional pull-out resistance and minimal elongation. Every chain is produced under ISO9001-certified quality management, ensuring the highest standards of pitch accuracy and material consistency for severe-duty industrial production lines.

Key Features

• Twin-TAB (TW) Enhanced Stability: the double-TAB guide system on the plate underside provides twice the retention force of standard chains, ensuring the extra-wide top plates remain perfectly flat and securely seated in the track during complex side-flexing motions

• High-Tensile 60P Steel Base: utilizes a reinforced 3/4" pitch steel roller chain as the drive core, providing the massive tensile strength required for heavy product loads and extended conveyor lengths without risking chain stretch or failure

• SGS Side-Guard & Protection Technology: the specialized SGS plate profile acts as a side guard to prevent product migration and protect delicate items from contacting the conveyor frame, ensuring smooth and safe transfer of large or unstable containers

• Extra-Wide Modular Surface: the TW design supports significantly wider top plates (up to 12 inches or more), offering a massive stable surface area for large format products, palletized goods, and wide industrial components

• Snap-On Hybrid Construction: high-performance plastic plates are snapped directly onto the steel base, combining the low-friction and chemical resistance of thermoplastics (POM/Nylon) with the rigid structural strength of hardened steel

• Precision Three-Dimensional Flexing: engineered articulation allows the chain to navigate horizontal curves and elevation changes seamlessly, maintaining a consistent rolling contact that eliminates vibration and product surging

• Comprehensive Customization: available in various widths, material grades (including anti-static and heat-resistant), and surface configurations to match the specific load, speed, and environmental requirements of your high-tension conveyor system

Application Range

• Heavy-Duty Bottling & Canning — high-speed curved routing for large-format glass bottles, heavy crates, and multi-pack kegs

• Large Container Handling — stable curved conveying for 5-gallon drums, chemical canisters, and oversized plastic containers

• Automotive Component Lines — high-tension transfer of large engine parts, transmissions, and heavy assembly sub-sections

• Logistics & Distribution — high-speed curved accumulation and routing for large-format parcels, freight, and palletized goods

• Building Material Conveying — stable handling of wide-format tiles, heavy hardware packs, and construction components

• Household Chemical Production — high-throughput curved lines for large laundry detergent containers and bulk cleaning supplies

• Industrial Manufacturing — any long-distance conveyor run requiring the combined strength of steel and the surface stability of wide plastic plates

• Food Processing & Packaging — curved transfer of heavy bulk-packaged goods and high-capacity jars through complex production layouts

Trusted Manufacturer of 1873TW-SGS Sideflex Steelbase Chains

Hangzhou Ocean Industry Co., Ltd. is a specialized manufacturer of 1873TW-SGS sideflex steelbase chains and high-performance hybrid conveyor systems, with products exported to Europe, North America, the Middle East, Southeast Asia, and other international markets since 2005. All 1873TW-SGS series chains are produced under ISO9001-certified quality management and are recognized by conveyor OEMs, system integrators, and industrial end-users worldwide for extreme-load performance, reliable wide-surface stability, and competitive factory-direct pricing.

We offer complete OEM and ODM customization services — 1873TW-SGS sideflexing chains can be manufactured to customer-supplied drawings, samples, or specific operational load and width requirements. Contact our engineering team today with your drawings or requirements for a free quotation and technical consultation.
