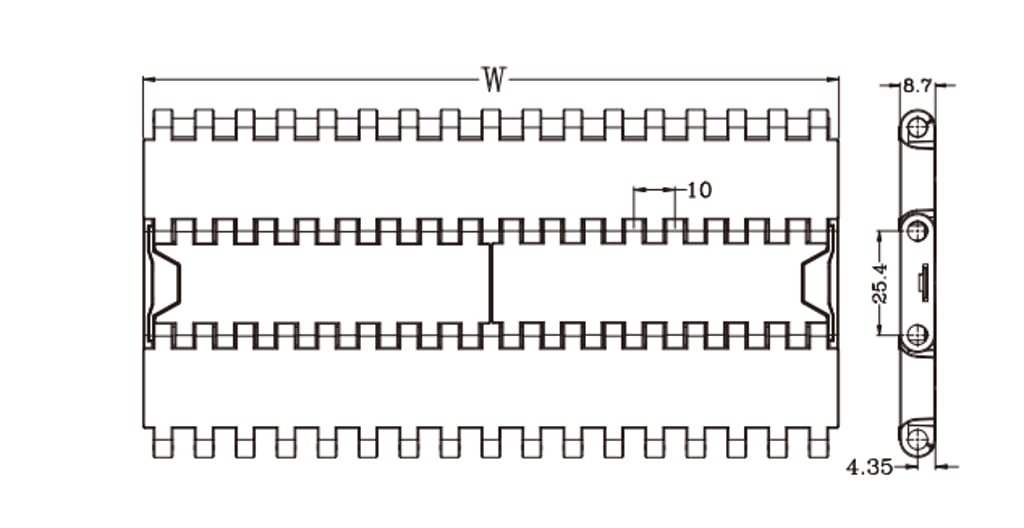

1000 Series Flat Top Mesh Conveyor Belt

Description

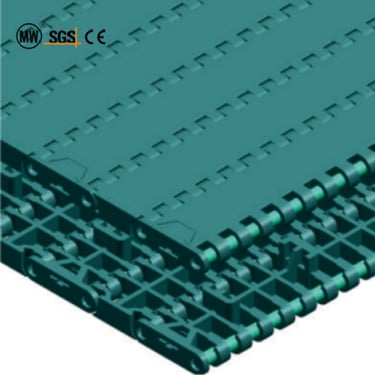

The 1000 Series flat top mesh conveyor belt is a versatile modular belting solution purpose-built for applications requiring superior airflow, efficient drainage, and even product distribution across drying, cooling, washing, and baking processes. Widely deployed in food processing plants, chemical handling facilities, pharmaceutical manufacturing, textile finishing lines, and industrial heat-treatment operations, the 1000 series combines an open-mesh flat-top surface geometry with robust modular link architecture to deliver consistent product support while permitting unrestricted passage of air, water, and process fluids through the belt surface.

Constructed from select engineering thermoplastics or stainless steel options using high-precision injection molding and controlled-tolerance assembly, every 1000 series flat top mesh belt from Hangzhou Ocean Industry guarantees exceptional tensile integrity, minimized elongation under load, and prolonged service life even under sustained high-temperature or wet-environment operating cycles.

Key Features

Open-mesh flat-top surface architecture: precision-configured mesh openings across the belt surface deliver optimized air circulation and fluid drainage — ideal for cooling, drying, washing, blanching, and coating operations where uniform product exposure is critical
Modular injection-molded construction: individual flat-top mesh links interlock via strong hinge-pin connections, allowing quick on-site belt length adjustment, localized module replacement, and tool-friendly maintenance without removing the entire belt from the conveyor frame
Superior airflow and drainage performance: engineered open-area ratios ranging from 10% to 40% (customizable) enable rapid heat dissipation, efficient liquid runoff, and reduced residual moisture — maximizing throughput in thermal processing and sanitation-intensive applications
High structural strength with low belt mass: reinforced rib geometry beneath each flat-top link provides high load-bearing capacity while keeping overall belt weight low — reducing drive motor load, supporting energy efficiency, and permitting longer conveyor spans
Temperature and chemical resilience: available in heat-resistant acetal (POM), polypropylene (PP), polyethylene (PE), and high-temperature nylon grades — materials are selected to withstand thermal cycling from -40°C to +120°C (model-dependent) and resist alkalis, acids, detergents, and process chemicals
Sanitary open-hinge design: wide-opening hinge joints and smooth flat-top surfaces prevent product debris accumulation, support CIP (Clean-in-Place) protocols, and meet FDA and EU food-contact compliance standards for hygienic conveying in regulated industries
Comprehensive customization options: belt width, mesh opening size, link pitch, pin material (plastic or stainless steel), surface texture, color coding for line identification, and flight/side-guard accessories can all be specified to match exact process parameters

Application Range

Food processing — fruit and vegetable washing, blanching, cooling, and dewatering lines
Bakery and snack production — proofing, baking, cooling, and freezing conveyor systems
Seafood, poultry, and meat processing — drainage, chilling, and grading conveyors
Pharmaceutical and nutraceutical — drying, coating, and tablet handling belts
Industrial parts washing, degreasing, and surface treatment lines
Textile and nonwoven finishing — drying, curing, and stenter feed conveyors
Chemical and fertilizer — granule cooling, sizing, and bulk material transport
Packaging — rinsing, air-drying, and accumulation conveyors for bottles, cans, and containers

Trusted Manufacturer of 1000 Series Flat Top Mesh Conveyor Belts Hangzhou Ocean Industry Co., Ltd. specializes in the design and production of 1000 series flat top mesh conveyor belts and complementary modular belting components, serving customers across Europe, North America, the Middle East, Southeast Asia, and beyond since 2005. All 1000 series mesh belts are produced under ISO9001-certified quality management protocols and are trusted by OEMs, system integrators, and end-users worldwide for dimensional accuracy, material consistency, and reliable long-term performance.

We provide complete OEM and ODM belt customization — flat top mesh belts can be produced to your drawings, sample specifications, or performance requirements including open-area ratio, working temperature, load capacity, and chemical exposure conditions. Contact our engineering team today with your drawings or process specifications for a complimentary quotation and technical consultation.

Quality

Expert chain manufacturing with 20 years experience.
